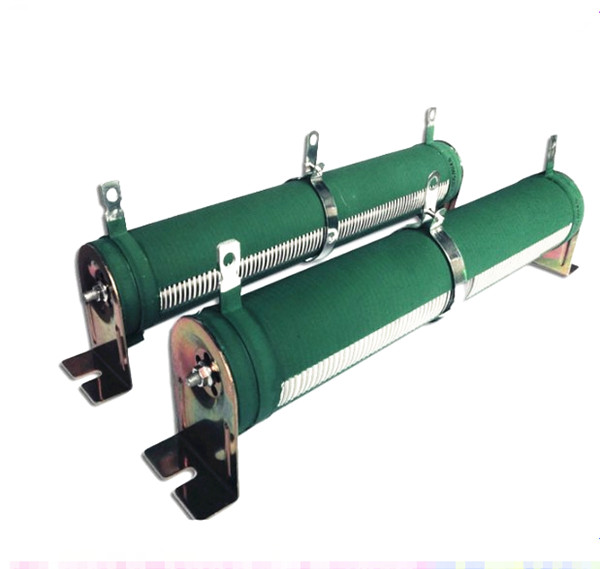

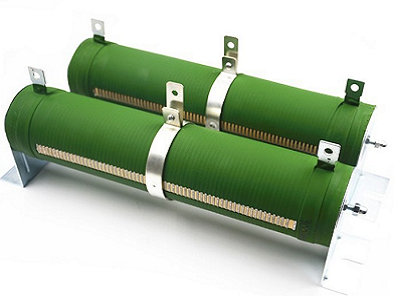

RX20 power adjustable wirewound sliding rheostat resistor
wirewound adjustable resistor,rheostat resistor,
Rated Power:100W 200W 500W 1000W 2000W
Resistance:0.1R~2KR
Technology:Wirewound
Package Type:Throught Hole
Resistance Tolerance:±5%
Temperature Coefficient:≤ ±350ppm/℃
Operating Temperature:-55℃~+155℃
Product Name:RX20 Power Adjustable Wirewound sliding rheostat
Key word:sliding rheostat
Rated power:100W 200W 500W 1000W 2000W
Non-standard size:can be customized
Material:ceramics tube Wirewound
Strut:include
Features:
1.High power rating,resistance to humidity, resistance value in great adjustable range.
2.Widely used in educational modeling,load simulations,industiral machinery RPM adjustment,
voltage and current adjustment,instruments,and automated control installations, ect.
3.Can provide the knob with customers requirement.
Common specificaction:
25W,50W,100W,150W,300W,500W,1000W,1500W,2000W,2500W,3000W ect.
Specification:
1. Limit operating voltage of rheostat: 1000V: insulation voltage 2500V
2. Temperature rise of rheostat: 25-100W varieties < 300K; > 150W varieties: < 350K
3. Sliding Degree: 25-50W Varieties: 280+5 degrees; > 100W Varieties: 300+5 degrees
4. Resistance Law, Linear Deviation: During the whole journey, the resistance law changes into a linear law,
the linear deviation is not (+10%).
5. The rheostat control shaft should rotate for 5000 weeks in no less than 90% of the journey. There should be
no visible damage to the rheostat.
6. The resistance of the rheostat is less than 1.5 after 6 weeks (six days) of alternating humidity and heat at
40℃ at high temperature.
Pls feel free to contact me for more information.
