FR4 G10 3240 G11 glass fiber epoxy fiberglass board laminate sheet

Fiberglass epoxy flat bar frp epoxy strip for bow Limb
epoxy flat bar,frp flat bar,fiberglass flat bar,epoxy strip,fiberglass strip,fiberglass epoxy flat bar

Application:

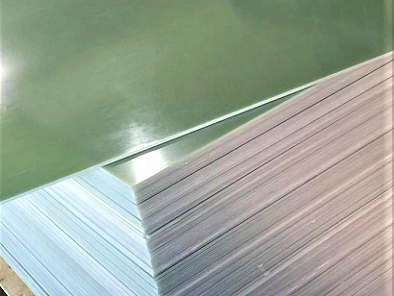

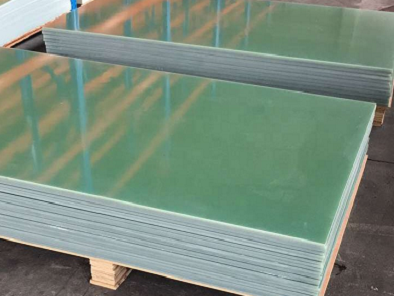

FR4 G10 3240 G11 glass fiber epoxy fiberglass board laminate sheet
epoxy sheet
fiberglass laminate sheet
epoxy laminate sheet
FR4 epoxy sheet
fiberglass laminate sheet
epoxy glass fiber sheet

1.FR4/G10/G11 epoxy glass fiber laminate sheet is a composite material composed of woven fiberglass cloth and brominated flame retardant with an epoxy resin binder that is flame resistant (self-extinguishing).
2.FR stands for flame retardant, and denotes that safety of flammability of FR4 is in compliance with the standard UL94V-0.

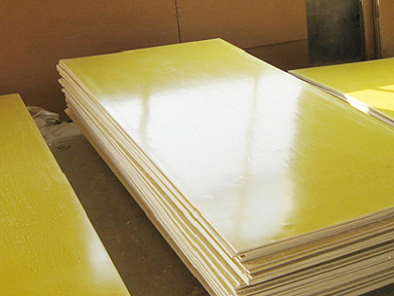

This laminated product is formed through heat pressing after electric industry alkali glass cloth dips into the epoxy phenolic resin. It has high mechanic and dielectric performance, and applicable as insulation structural components for electromechanical or electrical equipment, as well as used under damp environmental conditions and transformer oil .

Technical requirement for surface.
The surface of laminated board should be flat and smooth, no bubble, no wrinkle, no delamination or crackle, and properly free from other defects such as scrape, impress, dirty spot and uneven color, but a little color patches is allowed.

Frp laminate sheet advantages:

• High mechanical strength
• Very good electrical isolation
• Low weight

• Easy installation
• High safety against brittle fracture
• High safety against vandalism

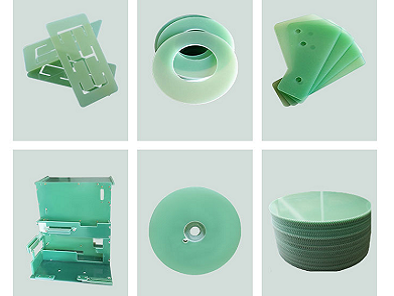

Applications.
♦ Chemical machinery parts, general machinery parts
♦ Gears, generators, pads, bases, baffles, generator, transformer, fixture inverter, motor and electric insulation component.
♦ Distribution box, fixture board, the mould plate, high and low voltage distribution box, packing machine insulation parts.
♦ Mold making, PCB,ICT fixture, molding machine, drilling machine, mesa grinding pads etc.

Pls feel free to contact me for more information anytime.
